1、最小粒徑通道0.1μm；
2、粒徑范圍0.1到5.0微米 ；
3、觸摸屏操作；
4、顆粒計數同時顯示可高達8通道 ；
5、長壽命激光二極管技術?
立即咨詢

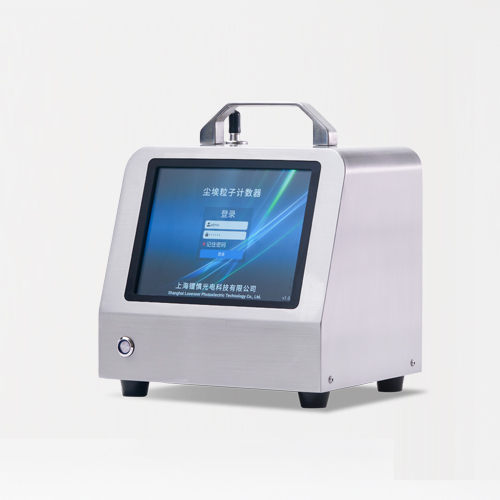

LPC-110 型激光塵埃粒子計數器用于測量潔凈環境中單位體積空氣內的塵埃粒子大小及數目，最小粒徑檔 0.1μm，流量為 28.3L/min?？芍苯訖z測潔凈度 等級為三十萬級至十級的潔凈環境。本產品可廣泛應用于電子、光學、化學、食
品、化妝品、醫藥衛生、生物制品、航空航天等部門。
This portable particle counter supports a complete contamination control solution including clean area monitoring while meeting global requirements for environmental monitoring and data integrity. It has eight channels, and the smallest particle can be detected is 0.1μm. Designed for intuitive and reliable particle counting in the air of clean room. It meets international cleanroom certification standards including ISO 14644-1. It can be widely used in semiconductor manufacturing processes, optics, chemistry, food, cosmetics, medicine and health, biological products, aerospace and other areas.

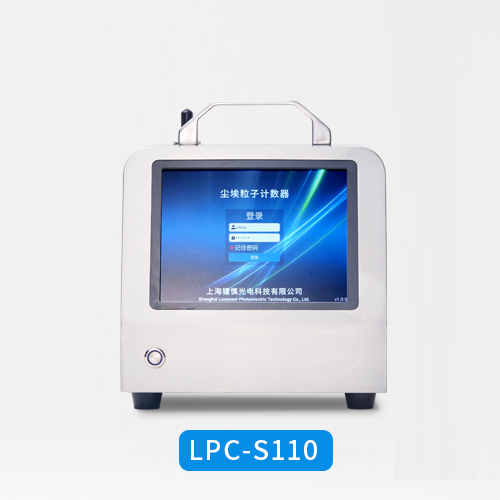

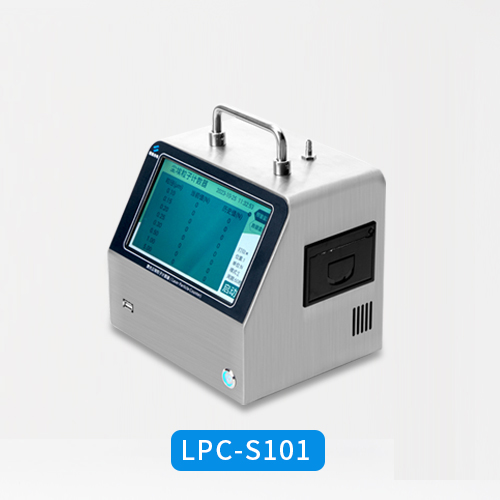

| 型號 Model | LPC-S101 | LPC-S110 |
| 流量 Flow | 2.83L/min | 28.3L/min |
| 粒徑范圍 Particle Size Range | 0.1μm～5μm | |
| 粒徑通道 PM Ranges | 0.1μm、0.15μm、0.2μm、0.25μm、0.3μm、0.5μm、 1.0μm、5.0μm八個通道 | |
| 計數效率 counting Efficiency | 50士20%@0.1um;90%士10%@>0.15μm | |
| 示值誤差 Indication Error | 50±20%FS | |
| 濃度上限 Maximum Concentration1 | 35000顆/L | |
| 自凈時間 Zero Count Level | ≤10min | |
| 激光光源 Laser Classification | 長壽命半導體激光光源 | |
| 顯示 Display | 7英寸彩色觸摸屏界面 | |
| 通訊方式 Communication | RS232 | |
| 數據儲存 Data Storage | 至少100000組數據記錄 | |
| 真空 Vacuum | 內置泵，內部自動流速控制 | |
| 電源 Power Supply | 鋰電池續航時間約5h（適配器接220V交流） | |
| 外殼 Housing Material | 不銹鋼 | |
| 工作環境 Operating Environment | 溫度5℃～40℃，濕度0～98%（不結露） | |
| 尺寸 Dimensions | 200mm(寬)×180mm(高)×160mm(深)（不計氣 嘴、把手等附件） | 250mm(寬)×215mm(高)×220mm(深)（不計氣 嘴、把手等附件） |
| |
